Electric Beard

The Electric Beard is a parallel twin fuzz that merges a modified, Black Russian Muff style circuit with a classic, Super Fuzz style octave up fuzz. Blend in as much or as little of each signal as you like to find your perfect tone.

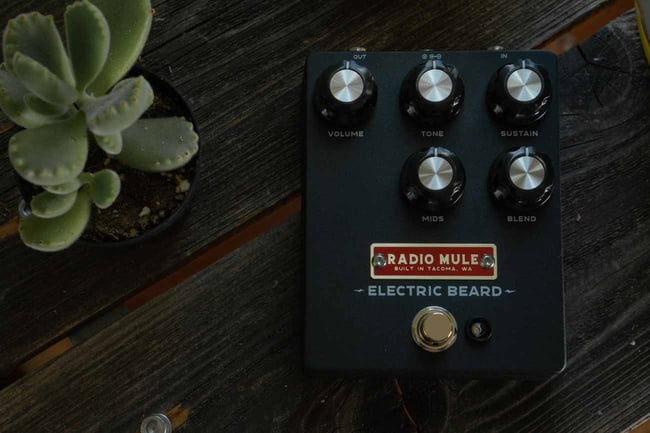

Controls

Sustain

Controls how much signal hits the parallel clipping circuits. Anything from mild overdrive to full on raging fuzz is possible.

Blend

Mix as much of either fuzz circuit into the sound as you like. Full counter-clockwise gives you a warm wooly fuzz based on a black Russian Big Muff. Turning the knob clockwise adds an octave fuzz inspired by the old Super Fuzz pedals.

Tone

Controls a typical Big Muff tone stack; all bass to the left, all treble to the right.

Mids

Shifts the tonal center of the tone stack, adding body and fullness or reducing muddiness.

Volume

Controls the output level of the Electric Beard. The output stage is tuned to be exceptionally loud, giving you plenty of volume to experiment with blended, low-gain fuzz sounds and boost the front end of your amplifier.

Details

Input impedance 5 Mohm.

Output Impedance < 12 Kohm.

Dimensions W 3.625" (91mm) x L 4.625" (117mm) x H 2" (51mm)

Use only a 9v, center-negative, 100ma or greater power supply. An isolated power supply is recommended if chained with other effects.

All Radio Mule pedals are hand built in Tacoma, WA.
